Custom Solutions For Track Maintance
The JG80LT8-ton Crawler Railway Excavator, specially designed for rigorous railway maintenance and construction, is your reliable support for efficient operation in track engineering. Its distinctive double-head tamping design integrates excavation and precise tamping functions, seamlessly switching between earthwork operations and track ballast compaction processes, significantly reducing equipment replacement time and enhancing line maintenance efficiency. The sturdy crawler chassis endows it with outstanding stability and low ground contact pressure, enabling it to easily navigate through complex railway environments such as narrow shoulders and slope edges, ensuring construction safety and reliability. Whether it is for foundation excavation, trench excavation during new line construction, or track bed consolidation and sleeper replacement support operations during existing line maintenance, this professional equipment can provide an integrated and highly efficient construction solution for your railway projects, making it an ideal choice for railway engineering contractors to enhance their core competitiveness.
Item No :
JG80LTOrder(MOQ) :
1Payment :
L/C or T/TProduct Origin :
ChinaColor :
yellowShipping Port :
xiamenLead Time :
15-45daysWeight :
8000kgEfficiency，Railway tamping machines adopt automated tamping technology to significantly shorten track maintenance time and ensure that large-scale railway projects are completed on schedule. Accuracy，Realize the millimeter-level error control of ballast tamping, effectively prevent the risk of track deformation, settlement or derailing. Improve the stability of train operation, but also reduce the accident rate. Durability，The railway tamper uses wear-resistant materials and modular design to extend the life of the equipment, while reducing maintenance frequency and labor costs.
|

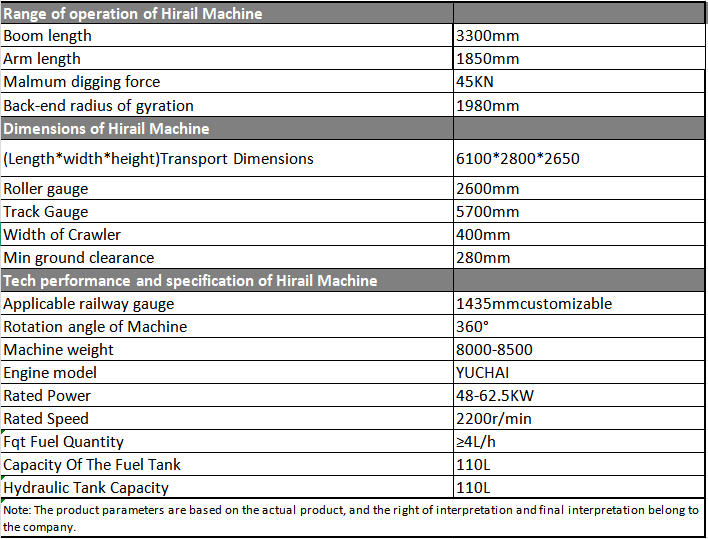

Range of operation of Hirail Machine |
|
|
Boom length |
3300mm |
|
Arm length |
1850mm |
|
Malmum digging force |
45KN |
|
Back-end radius of gyration |
1980mm |
|
Dimensions of Hirail Machine |
|
|
(Length*width*height)Transport Dimensions |
6100*2800*2650 |
|
Roller gauge |
2600mm |
|
Track Gauge |
5700mm |
|
Width of Crawler |
400mm |
|
Min ground clearance |
280mm |
|
Tech performance and specification of Hirail Machine |
|
|
Applicable railway gauge |
1435mmcustomizable |
|
Rotation angle of Machine |
360° |
|
Machine weight |
8000-8500 |
|
Engine model |
YUCHAI |
|
Rated Power |
48-62.5KW |
|
Rated Speed |
2200r/min |
|
Fqt Fuel Quantity |
≥4L/h |
|
Capacity Of The Fuel Tank |
110L |
|
Hydraulic Tank Capacity |
110L |
|
Note: The product parameters are based on the actual product, and the right of interpretation and final interpretation belong to the company. |
|
Product Overview

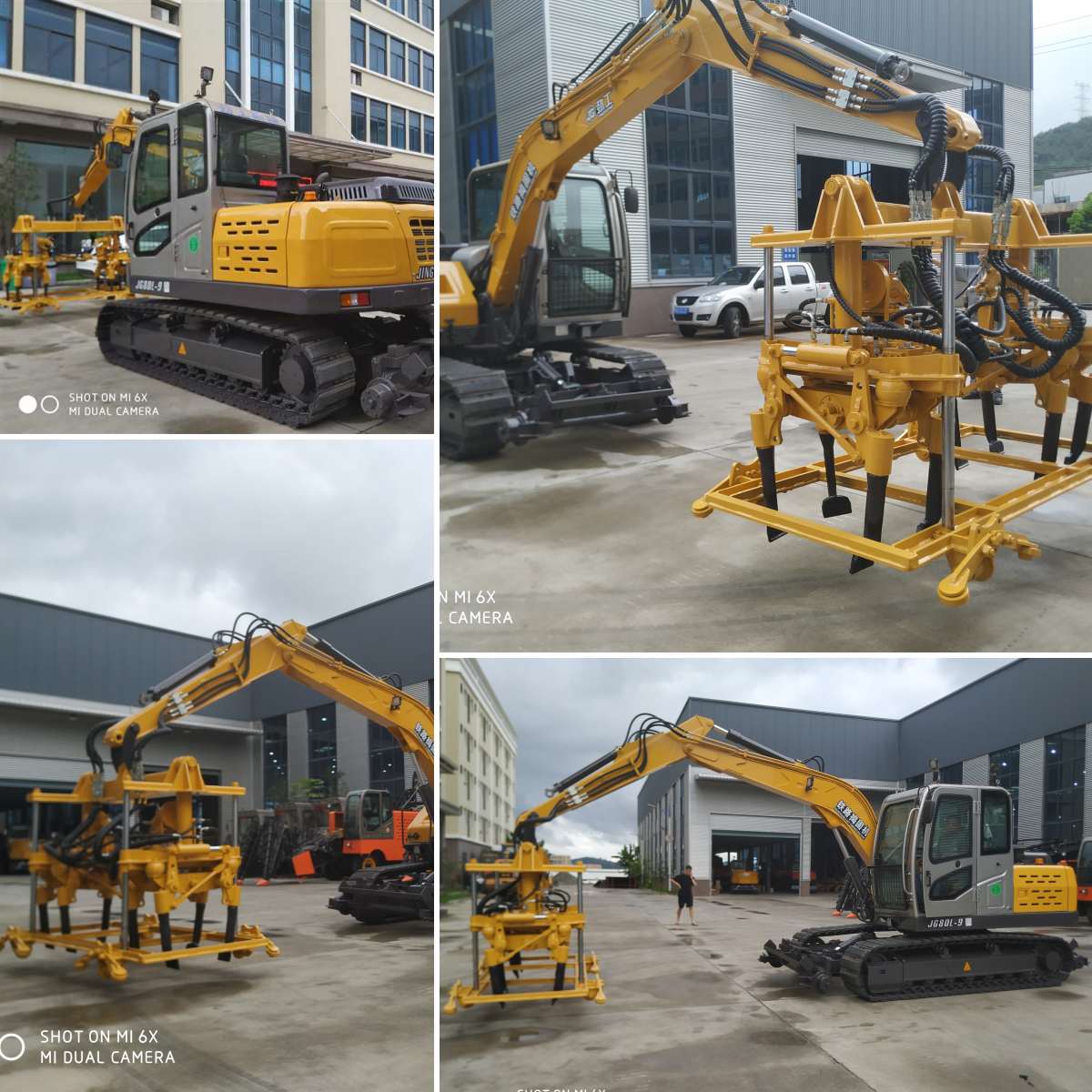

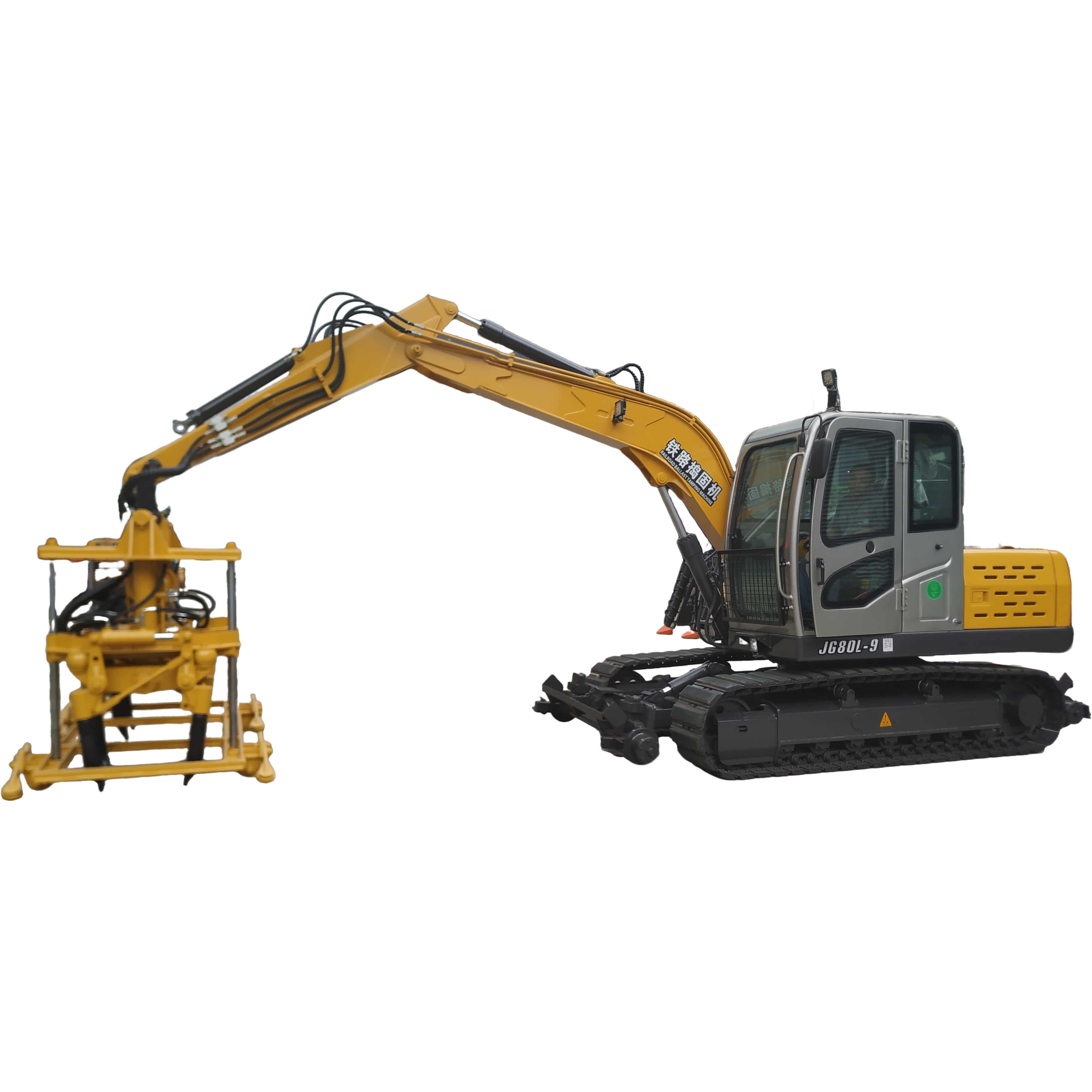

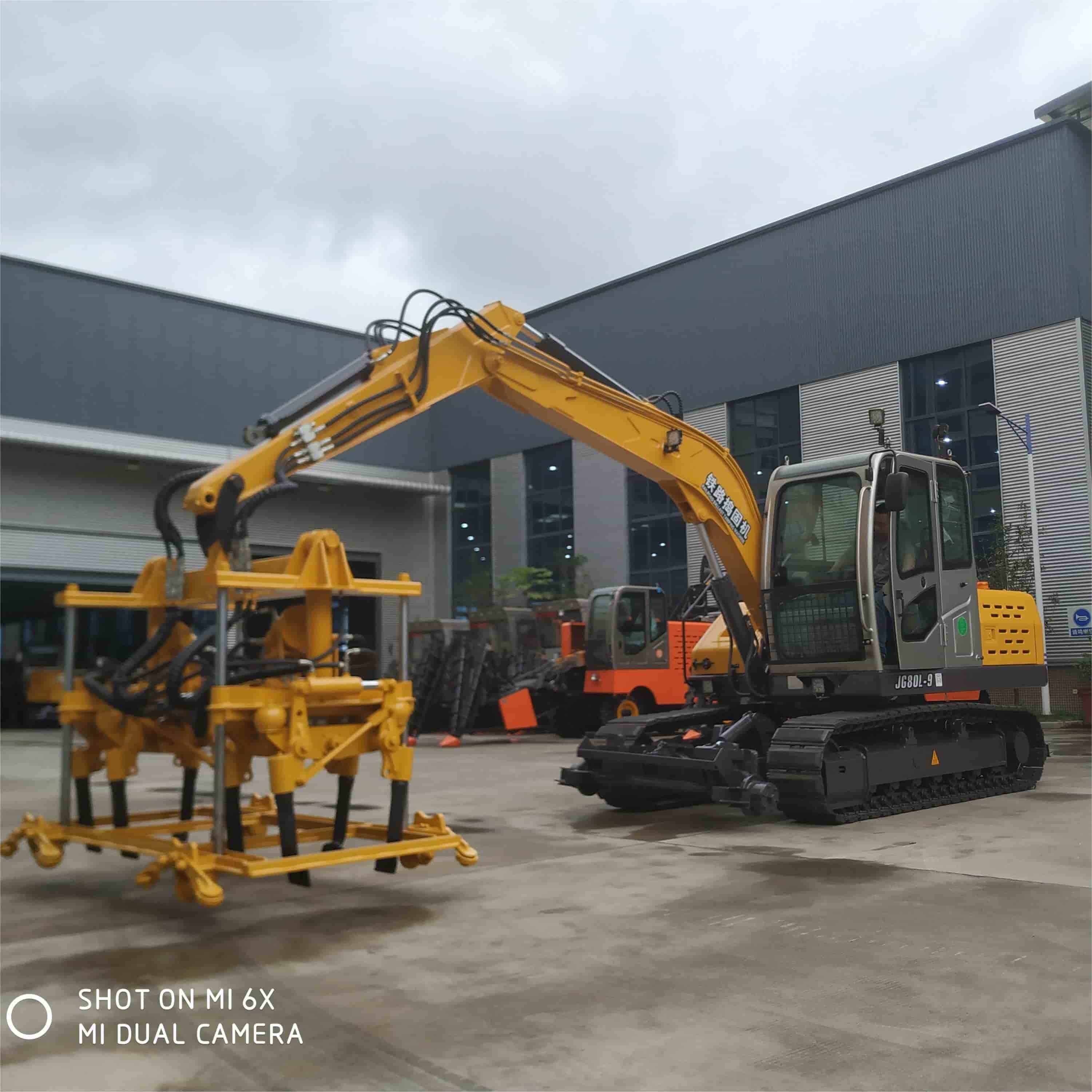

8-ton crawler railway excavator double-head tamping excavator
The JG80LT8-ton Double-Head Tamping Excavator represents a revolutionary breakthrough in railway-specific construction machinery. It ingeniously combines traditional excavation functions with a professional tamping arm, allowing one machine to complete the key processes from foundation excavation to precise ballast tamping. This completely overturns the traditional multi-device collaboration model, maximizing construction continuity and shortening the construction period. Its optimized crawler system is specifically tuned for railway conditions, providing excellent traction and passability. Even in restricted spaces or soft roadbeds, it can operate stably, ensuring that the project progress is not constrained by the terrain. The core value of this equipment lies in its professional "double-head" design. It not only reduces equipment investment and transportation time, but also significantly improves the overall efficiency and quality controllability of track construction through the integration of functions. It is an indispensable efficient productivity tool for professional teams dedicated to optimizing railway construction and maintenance processes. It helps you gain an advantage in the fierce market competition.
Product Advantages
Technical Specifications
Application scenarios
Global Exhibition
In response to the demands of customers from different regions, the company participates in internationally renowned industry exhibitions every year. Our products are exported to over 60 countries and regions in Central Asia, Southeast Asia, the Middle East, South America, Africa, Oceania and so on. The annual export volume reaches more than 1,500 units and we enjoy a high reputation in overseas markets. Every appearance showcases the brand's global influence. We join hands with our partners to win the future together!
About Us
Quanzhou Jingong Machinery Equipment Co., Ltd. is equipped with various imported large-scale processing equipment, professional technical developers and outstanding management talents. As a global construction machinery manufacturing enterprise integrating R&D, production, sales and service, it provides high-performance and highly reliable construction machinery equipment and intelligent solutions for customers worldwide. The annual sales exceed 30 to 50 million US dollars, and the annual production of excavators can reach about 2,000 to 3,000 units.
Credential
The company has passed the ISO9001 quality management system certification and the national intellectual property certification, and holds nearly a hundred patent certificates including invention patents, design patents and utility model patents. It has been awarded titles such as "Well-known Domestic Trademark" and "National High-tech Enterprise", and has received numerous honors. It has simultaneously won multiple international and domestic invention gold awards and has the right to export independently.
